PREMIUM SOLDER SEAL RING: Tubing reduces in size, the enough solder will melt and flow through the stripped wires, ensure a long lasting connection for your application

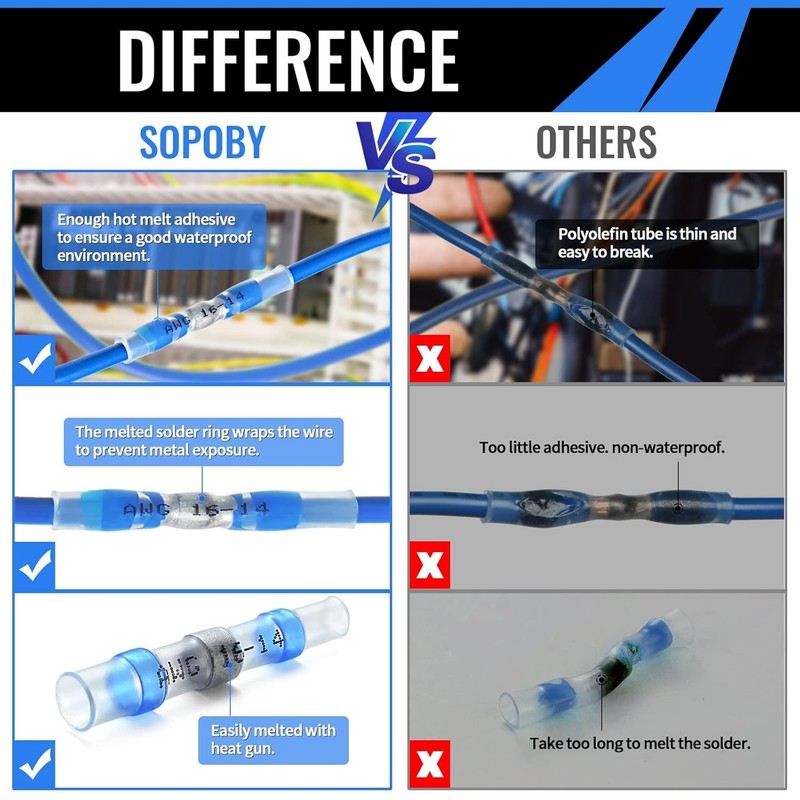

BETTER WATERPROOF SOLUTIONS: Double wall design, Hot Melt Adhesive inside ensures wires strongly connected and prevent wires slipping from the terminal; Polyolefin outside tubing provides insulation and improves pullout strength
ABRASION RESISTANCE HEAT SHRINKABLE TUBE: Premium tube materials are specially designed to be used in harsh environments. Protect the wires and cables from abrasion, cutting, scuffing and low impact situations
EXCELLENT WIRE CONTACT - The tin barrel provides increased current flow, and ensures less voltage drop, preventing wiring failures and reducing equipment downtime
WIDE APPLICATIONS: Excellent stability, water resistance and electrical conductivity provide durable connection for motorcycle, off-road vehicles, lawn tractors, RVs, fish finder and marine application. Widely used on multiple projects of your Christmas lights, ships with high waterproof requirements motorcycle stereo, boat electronics, equipment switches
Product Description

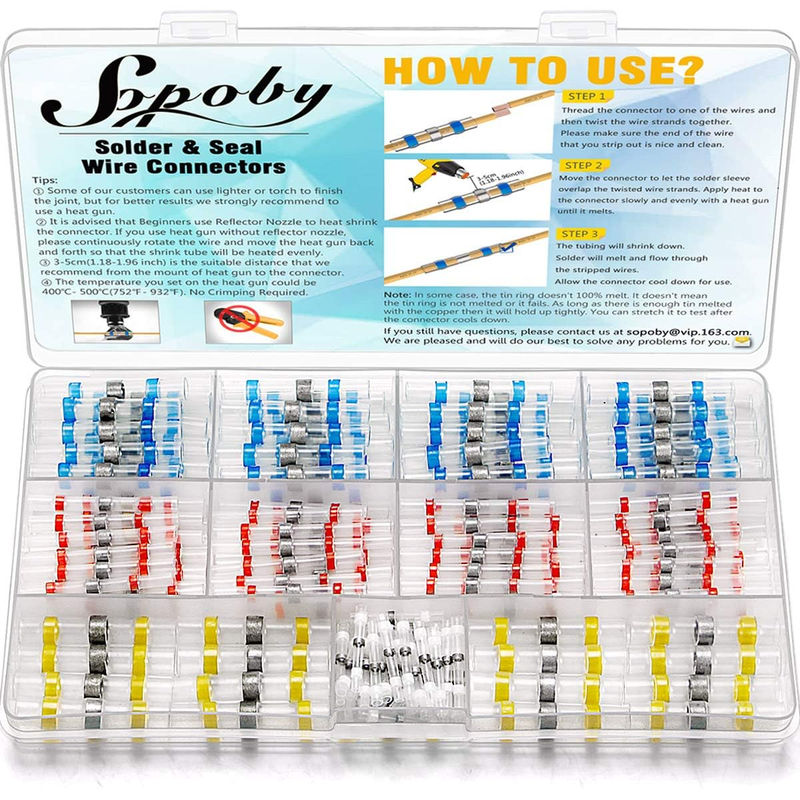

Sopoby Solder Seal Wire Connectors

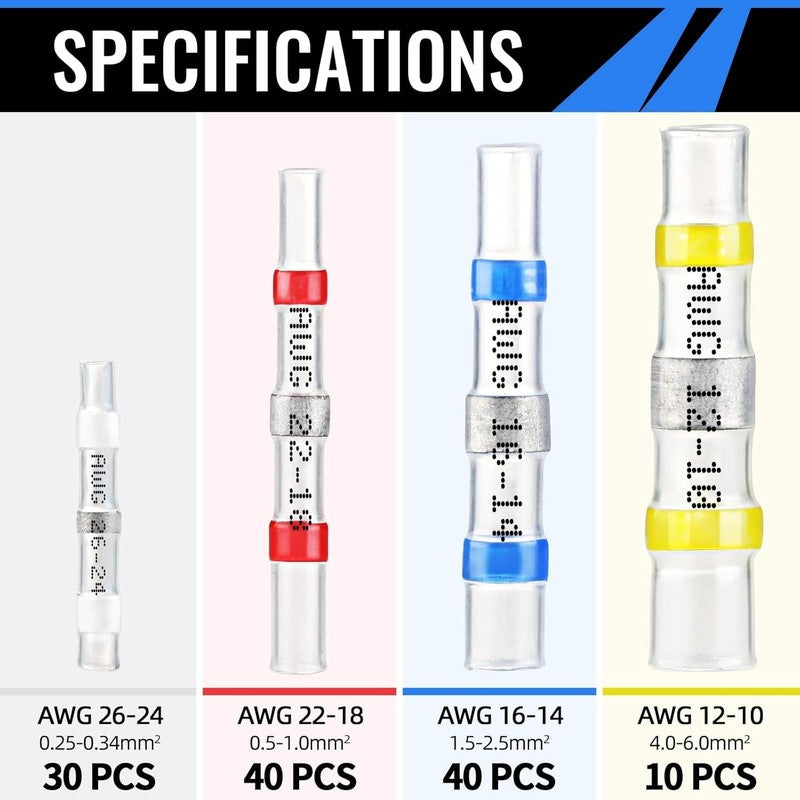

SPECIFICATION
Shrinkage ratio 2:1

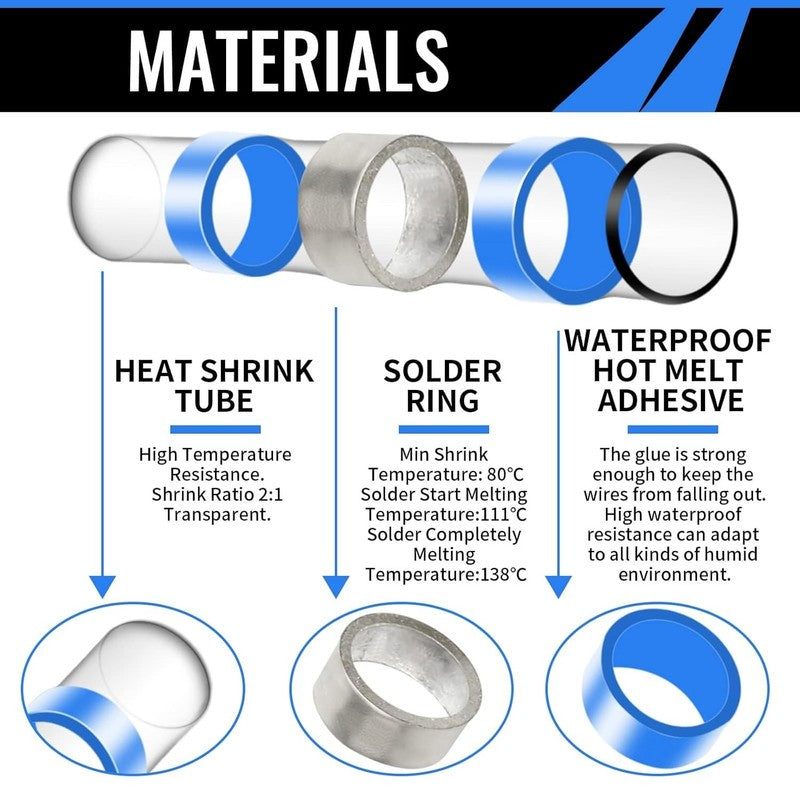

Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside Color coded connector tubing Heat activated waterproof adhesive
Temperature that start to shrink: 80℃
Temperature that solder ring start to melt: 111℃
Temperature that solder ring melt completely：138℃

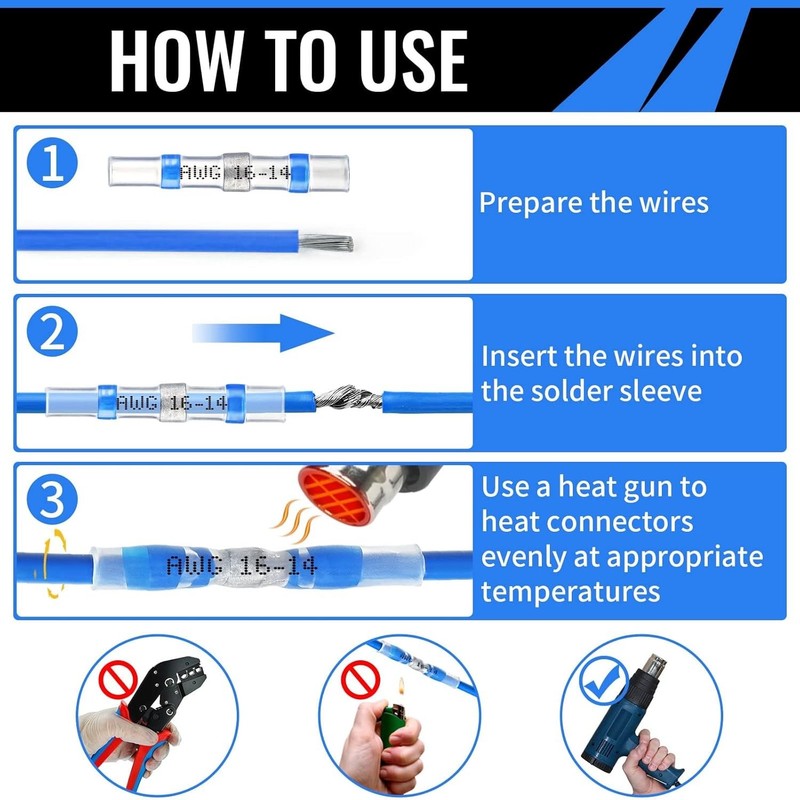

Note: We suggest the temperature that the hot air should set about:400-600℃ (752-1112°F)
Rugged and puncture resistant.

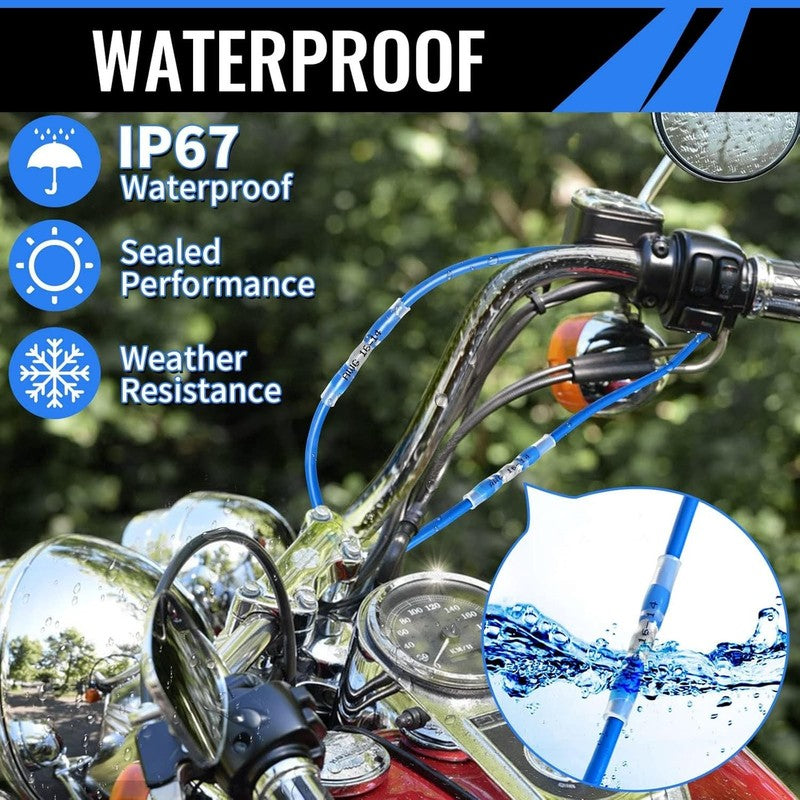

Waterproof.
Resistant to abrasion, stretch and vibration
Heat activated adhesive
Greater tensile strength
All materials are heat resistant
Suggest used a 1500W heat .
Create a waterproof seal
Resistant to stretch and vibration
Color coded for easy identification
Starts to melt at lower temperature (280 °F)
Prevents burns in the heat shrink tubing
A more efficient alternative to soldering
Offer protection to the wires and cables from abrasion, cutting, scuffing and low impact situations.
